Executive Summary
The Statewide Multimodal Transportation Plan is Minnesota’s highest level policy plan for transportation. It is a 20-year plan based on the Minnesota GO Vision for a transportation system that maximizes the health of people, the environment and the economy.
The plan is for all types of transportation and all transportation partners. It is about more than just roadways and more than just the Minnesota Department of Transportation. It evaluates the status of the entire transportation system, takes into account what is changing and provides direction for moving forward over the next 20 years.
How is the Plan Updated?
MnDOT is required by state and federal law to plan for 20 years into the future but also to update the plan every four years. The SMTP was last updated in 2012.

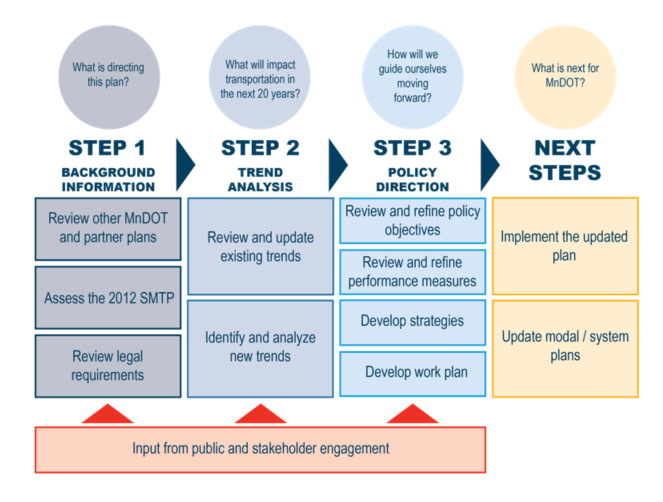

Figure 1: Statewide Multimodal Transportation Plan Update Process
Plan Update Process
Baseline Assessment
The process began with a review of other MnDOT plans and plans from transportation partners. It also included a review of the changes in law and policy since the plan’s last update in 2012. Information was collected about what MnDOT and other transportation partners are currently doing and what is already planned for the future. Finally, MnDOT evaluated the progress made so far in implementing the 2012 SMTP. More information from the baseline assessment is available in the Appendices.

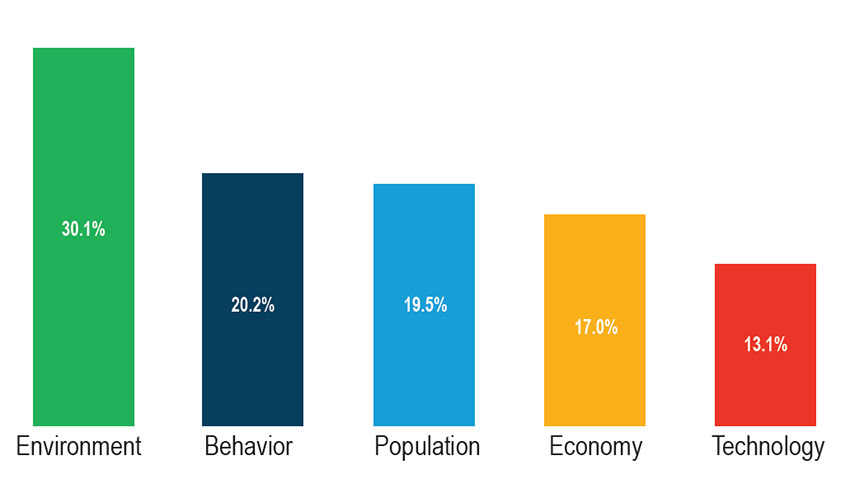

Figure 2: Percent of Respondents Identifying a Trend Category as Their Top Priority
Trend Analysis
The next step focused on how Minnesota’s population, economy, environment, transportation behavior and technology are changing. It included reviewing the recent past, making educated guesses about the future and analyzing what the future changes might mean for transportation in Minnesota. Chapter 3 provides a summary of the twenty trends analyzed. During this step, Minnesotans prioritized the trends based on how important it is for MnDOT to plan for the changes and suggested potential responses. A summary of input is included in Chapter 4.
Revise Policy Direction
Using the baseline assessment, trend analysis and input from the public and partners, MnDOT updated the objectives and strategies of the 2012 SMTP. Additionally, key performance measures were identified for each objective. The updated objectives, performance measures and strategies are listed in Chapter 5. A near-term wok plan for MnDOT was also developed. The work plan includes a list of activities MnDOT will do in the next four years and can be found in Chapter 6
Throughout the entire update process, MnDOT sought input from the public and transportation partners. A summary of the input received is included in Chapter 4. A detailed report of the public engagement activities is available in Appendix D.
Figure 3: Top 5 Most Important Individual Trends
| MINNESOTA GO VISION | ||
|---|---|---|
| Minnesota’s multimodal transportation system maximizes the health of people, the environment and our economy. The system:
| ||
| Quality of Life The system:
| Environmental Health The system:
| Economic Competitiveness The system:
|
Family of Plans
The SMTP provides a framework for a full set of statewide transportation plans. MnDOT plans for all the ways people and goods move throughout Minnesota—individually for each mode and together as a multimodal system. The SMTP identifies overarching guidance and priorities for the entire transportation system. The other statewide transportation plans offer mode-specific strategies, guidance and investment priorities for each part of the system. These plans include aviation, bicycle, freight, highway, pedestrian, ports and waterways, rail and transit. Additional plans provide more detail related to safety, accessibility, operations, technology and more. Together the “family of plans” directs investments, maintenance, operations, modal programs and services for the all types of transportation.
Figure 4: MnDOT’s Family of Plans
Minnesota's Transportation System
Minnesota has a vast multimodal transportation system that includes roads, rail lines, airports, ports, waterways, pipelines, transit systems, trails, paths, sidewalks and more. MnDOT and local, regional, state, tribal and federal government partners, along with private sector and non-profit partners keep the system running.
Table 1: Snapshot of Minnesota’s Transportation System, 2016
| Characteristic | Current Status |
|---|---|
| All Streets, Roads and Highways | 142,914 centerline miles |
| State Trunk Highways | 11,814 miles |
| County Roads | 44,821 miles |
| City Streets | 22,414 miles |
| Township Roads | 58,686 miles |
| Other Public Roads | 4,405 miles |
| Sidewalk Miles | 620 miles along state highways, plus thousands more along local roadways |
| National and State Designated Bicycle Routes | 1,133 miles (Mississippi River Trail and North Star Route) |
| Designated Trails | More than 4,000 miles |
| Bicycle Sharing | One provider (Nice Ride MN) operating in Minneapolis and St. Paul; other informal systems in communities statewide |
| Twin Cities Transit | 212 bus routes (110 local routes, 102 express routes), two light rail transit lines, one highway bus rapid transit route, one arterial bus rapid transit route and dial-a-ride service |
| Greater Minnesota Transit | 76 of 80 (non-Twin Cities) counties with county-wide transit service, four counties with municipal service only, seven fixed-route systems and seven small urban systems |
| Intercity Bus | 87 destinations served in the state as well as connections to every metropolitan area in the Midwest |
| Freight Rail | 4,485 track miles served by 21 railroad companies |
| Commuter Rail (see transit above for light rail) | Northstar commuter rail line (Big Lake to Minneapolis) |
| Intercity Passenger Rail | Amtrak Empire Builder (Chicago to Seattle) |
| Airports | 388 airports in Minnesota, including 135 public airports, nine with commercial airline service |
| Great Lakes Ports | Four ports on Lake Superior |
| River Ports | Four public ports on 219 miles of the Mississippi River system (including the Minnesota and St. Croix rivers) |
| Pipelines | 9,347 miles |
| Carsharing | Two systems (HOURCAR and Zipcar) operating in Minneapolis, St. Paul, Winona and Mankato |
| Ride-hailing | Many local taxi companies, along with emerging ride-hailing companies like Lyft and Uber |
Partners
The key partners that will help implement this plan include:
Local partners: Agencies and organizations responsible for transportation systems and decisions at the local level.
Regional partners: Metropolitan planning organizations and regional development organizations.
State partners: All state agencies and organizations in Minnesota with a statewide mission and transportation interests or impacts.
Tribal partners: The 12 sovereign nations of American Indian peoples with jurisdiction over lands and resources in the state.
Federal partners: Agencies that provide funding and have policies that impact the delivery of the transportation system.
Private sector and non-profit partners: Transportation advocates, developers, chambers of commerce, construction companies, consultants and private industry.
In addition to the partners identified above, many boards, committees and councils contribute to transportation decisions. State and federal legislators, community leaders and the general public are also active participants in the state’s transportation system.
Objectives, Performance Measures & Strategies
This plan focuses on five objectives. Each objective includes related strategies for MnDOT and transportation partners. Taken together, the objectives and strategies support the Minnesota GO Vision and help address the changes affecting Minnesota.
All transportation partners are engaged in many different activities that help to realize the vision on a daily basis. The purpose of this plan is not to list every possible activity, but to focus on key areas where additional emphasis is needed.
The objectives and related strategies are listed in no particular order. All are critical focus areas for the upcoming years.
Definitions
- Objective statement – a few key phrases that describe the goal that MnDOT and transportation partners are working toward
- Performance measures – existing performance measures that track progress toward the objective
- Strategies – a list of actions to help MnDOT and transportation partners achieve the objective. The bold text of each indicates the strategy statement and is followed by additional description and examples.
Open Decision Making
Make transportation system decisions through processes that are inclusive,engaging and supported by data and analysis. Provide for and support coordination, collaboration and innovation. Ensure efficient and effective use of resources.
Table 2: Open Decision-Making Performance Measures
| Measure | Target | Reporting |
|---|---|---|
Annual percent of respondents that agree with the following statements:
| 80% - for each statement | Report number of statements not meeting target and which; identify differences among demographic groups |
| Annual percent minorities and women in the highway-heavy construction workforce | No target | Report percent and trend |
| Annual percent minorities and women in MnDOT’s workforce | No target | Report percent and trend |
| Annual percent of MnDOT construction projects let in the year scheduled (defined as projects in the first year of the STIP let in that year) | 90% | Report percent and trend |
What are the strategies?
- Engage with users and those otherwise affected by the system throughout all transportation processes.
- Communicate project-level information and impacts to the public and partners in a timely manner.
- Educate the public and partners on system-wide and modal questions in addition to project-specific transportation information.
- Develop and support a diverse workforce within the transportation sector.
- Use performance measurement to inform decision-making and show progress toward national, statewide, regional and local goals.
- Improve early coordination in planning, project-selection and scoping to more effectively and efficiently use resources and maximize benefits.
- Ensure key transportation data is kept up-to-date, usable and easily accessible to transportation partners and the public.
- Use research to inform decision-making and foster innovation within the transportation sector.
Transportation Safety
Safeguard transportation users and the communities the system travels through. Apply proven strategies to reduce fatalities and serious injuries for all modes. Foster a culture of transportation safety in Minnesota.
Table 3: Transportation Safety Performance Measures
| Measure | Target | Reporting |
|---|---|---|
| Total number of fatalities and serious injuries on Minnesota roadways resulting from crashes involving a motor vehicle each year | 300 fatalities and 850 serious injuries by 2020 | Report totals and by mode and urban / rural; report trend |
| Total number of aviation fatalities and incidents each year | No target | Report totals and trend |
| Total number of rail derailments each year | No target | Report totals and trend |
| Annual percent of at-grade rail crossings meeting grade-separation guidelines | No target | Report percent and trend |
| Total percent of the Allied Radio Matrix for Emergency Response buildout complete | 100% | Report percent |
What are the strategies?
- Increase participation in and continue support for the collaborative safety initiative Toward Zero Deaths.
- Explore new opportunities to improve safety for all modes of transportation.
- Develop and share critical safety information and support educational initiatives to reduce unsafe actions by all transportation users and operators.
- Emphasize enforcement techniques with proven safety benefits.
- Plan, design, build, operate and maintain transportation infrastructure and facilities to improve the safety of all users and the communities they travel through.
- Implement strategic engineering and technology solutions to improve transportation safety.
- Work with emergency medical and trauma services to reduce response time and increase survivability.
- Collaborate with local, regional, state and federal planning efforts to ensure efficient and coordinated response to special, emergency and disaster events.
- Enhance and maintain emergency communications infrastructure across the state.
Critical Connections
Maintain and improve multimodal transportation connections essential for Minnesotans’ prosperity and quality of life. Strategically consider new connections that help meet performance targets and maximize social, economic and environmental benefits.
Table 4: Critical Connections Performance Measures
| Measure | Target | Reporting |
|---|---|---|
| Placeholder for system reliability and delay measures for the Interstate and National Highway System | To be determined | Report total and by passenger / freight and urban / rural; report trend |
| Average annual aircraft delay compared to scheduled departure time at MSP | No target | Report total and trend |
| System airports with adequate approaches appropriate for their airport classification | 100% | Report percent and trend |
| Annual transit on-time performance within the Twin Cities and Greater Minnesota | No target | Report percent and trend |
| Total percent of state-owned sidewalk miles substantially compliant with ADA standards | 100% | Report percent and trend |
| Annual number of available seat miles offered on scheduled service nonstop flights from MSP and GM airports | No target | Report total and trend |
| Population within 30 minutes surface travel time to a paved and lighted runway | No target | Report percent and trend |
| Percent of state’s communities whose span of transit service meets the minimum guidelines each year | 90% | Report percent and trend |
| Average annual number of jobs accessible within a 30-minute drive during AM peak | No target | Report total and trend |
| Average annual number of jobs accessible within a 30-minute transit commute during AM peak | No target | Report total and trend |
What are the strategies?
- Define priority networks for all modes based on connectivity and access to destinations, and integrate the networks into decision- making.
- Provide greater access to destinations and more efficient, affordable and reliable movement of goods and people throughout the Twin Cities metropolitan area.
- Identify and prioritize multimodal solutions that have a high return on investment
- Improve freight operations and intermodal connections for better access to the transportation system.
- Identify and prioritize low-cost improvements to accelerate social, economic and environmental benefits when large-scale solutions cannot be implemented in the foreseeable future.
- Support and develop multimodal connections that provide equitable access to goods, services, opportunities and destinations.
- Provide transportation options that improve multimodal connections between workers and jobs.
- Develop and improve multimodal transportation options within and between cities and regions.
- Develop and improve connections between modes of transportation.
System Stewardship
Strategically build, manage, maintain and operate all transportation assets. Rely on system data and analysis, performance measures and targets, agency and partners’ needs, and public expectations to inform decisions. Use technology and innovation to get the most out of investments and maintain system performance. Increase the resiliency of the transportation system and adapt to changing needs.
Table 5: System Stewardship Performance Measures
| Measure | Target | Reporting |
|---|---|---|
| Annual percent of state highway miles with poor ride quality in the travel lane | Interstate: 2% NHS: 4% non-NHS: 10% | Report percent and trend |
| Annual percent of state bridges in poor condition as a percent of total bridge deck area | NHS: 2% non-NHS: 8% | Report percent and trend |
| Placeholder for transit vehicle condition measure | To de determined | To be determined |
| Annual percent of runway and parallel taxiway pavement in poor condition at all paved airports | 4% | Report percent and trend |
| Annual percent of routine bridge inspections completed on time | 100% | Report percent and trend |
| Annual percent of routine culvert inspections completed on time | 80% | Report percent and trend |
| Annual percent of bridges with posted weight restrictions | To be determined | Report percent and trend |
What are the strategies?
- Give asset management priority to infrastructure on identified priority networks.
- Maximize the useful life of transportation assets while considering system performance, costs and impacts to the state’s economy, environment and quality of life.
- Incorporate asset management principles in capital, maintenance and operations decisions.
- Better align ownership and operations of Minnesota’s transportation assets with statewide, regional and local priorities.
- Better coordinate the management of all assets connected to the transportation system.
- Proactively identify risks to the transportation system and surrounding communities to prioritize mitigation and response activities.
- Support regional approaches to mitigating identified risks to the transportation system and surrounding communities.
- Use recovery efforts to reduce system vulnerabilities.
- Providing ongoing training to transportation professionals.
- Conduct regular inspections of transportation infrastructure, facilities and equipment to monitor conditions and identify risks.
Healthy Communities
Make fiscally-responsible transportation system decisions that respect and complement the natural, cultural, social and economic context. Integrate land use and transportation to leverage public and private investments.
Table 6: Healthy Communities Performance Measure
| Measure | Target | Reporting |
|---|---|---|
| Annual greenhouse gas emissions from the transportation sector | 29.5 million tons CO2e by 2025 | Report total and trend |
| Number of criteria pollutants below National Ambient Air Quality Standards threshold each year | All criteria pollutants below threshold | Report number of pollutants not meeting standards and which |
| Total percentage of acres planted with native seeds on MnDOT projects | To be determined | Report percent and trend |
| Total percent of light fixtures using LED luminaries on MnDOT roadways | 100% | Report percent |
| Annual percent of MnDOT omnibus survey respondents perceiving safe environments for bicycling / walking | No target | Report percent and trend |
| Annual total road salt used for snow and ice control on the state highway system compared to modeled optimal salt use | Less than 10% more than modeled optimal quality | Report percentage difference and trend |
What are the strategies?
- Plan, design, develop and maintain transportation infrastructure and facilities in a way that reflects and is informed by the surrounding context.
- Give higher priority to transportation improvements in areas with complementary existing or planned land uses.
- Use a complete streets approach to assess trade-offs to better serve both users and those affected by the transportation system.
- Support and implement approaches that preserve Minnesota’s natural resources, avoid causing environmental harm and improve environmental quality.
- Coordinate land use and transportation planning within communities to ensure consistency, maximize benefits and limit long-term costs.
- Make transportation decisions that minimize and reduce total greenhouse gas emissions.
- Support economic vitality and create and maintain jobs through transportation infrastructure investments.
- Develop a transportation system that is respectful of cultural resources and maintains those resources for generations to come.
- Identify and give priority to infrastructure improvements, services and education that increase the number of people who bicycle, walk and take transit.
MnDOT Work Plan 2017-2020
MnDOT will do the activities listed below before the Statewide Multimodal Transportation Plan is updated again in four years. These activities are not necessarily specific to any one objective or strategy but represent key areas for MnDOT to advance. Taken together, these activities will help realize the overall policy direction laid out in this plan. The list is not meant to be all-inclusive. There are many other activities in each of these areas and other areas that MnDOT will do in the upcoming years to help move this plan forward.
Engagement, Education & Communications
- Increase the transparency of MnDOT’s project selection processes
- Provide more continuous engagement with partners and the public
- Develop and update new, more inclusive public engagement resources
- Develop and improve educational materials to answer key questions of interest to Minnesotans
- Develop and execute safety education campaigns
Advancing Equity
- Study how transportation affects equity and identify transportation strategies and approaches that will meaningfully reduce disparities
- Pilot tools and strategies to better incorporate equity into project-level decision-making
Asset Management
- Expand and improve asset management planning
- Identify vulnerabilities and assess risks to the transportation system
Land Use & Transportation
- Develop tools and resources to support transportation decisions that reflect the surrounding context
- Update MnDOT technical guidance to incorporate new practices and policy direction
Planning
- Review existing and potential new National Highway System intermodal connectors
- Refine the methodology used for calculating return on investment
- Maintain the MnDOT Trend Analysis Library.
- Study and work with transportation partners to prepare for connected and autonomous vehicles
Climate Change
- Work with transportation partners to identify and advance statewide strategies for reducing greenhouse gas emissions
- Study and implement new and improved practices to reduce negative environmental impacts from state highway maintenance and operations
